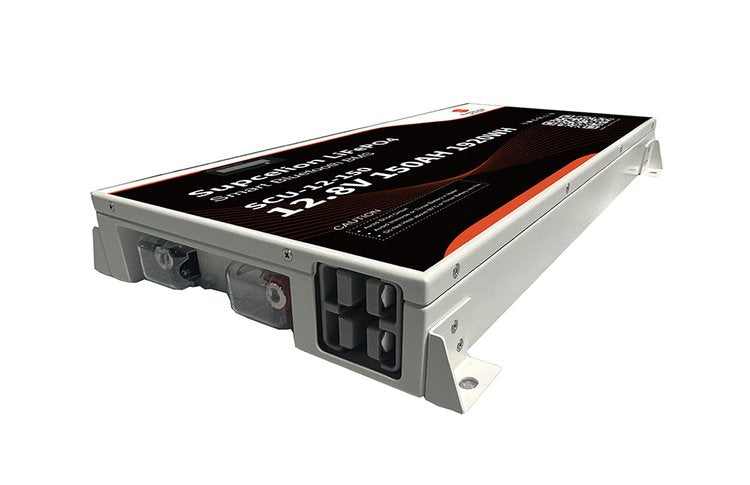

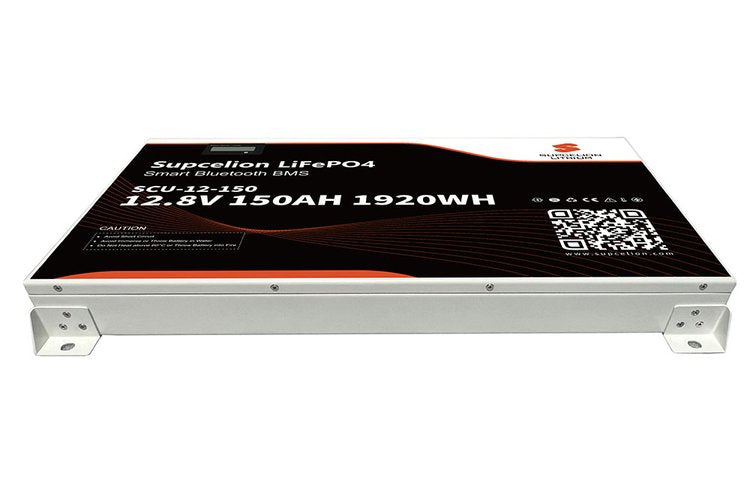

Supcelion 12.8V150Ah Slimline Lithium Battery with Bluetooth

150Ah slimline lithium, only 65mm tall

The Supcelion 12.8V 150Ah slimline is rated at 150Ah / 1920Wh in a flat metal case just 65mm high (570 x 380mm footprint, excluding terminals), so it suits wide, low spaces where a standard battery won't fit.

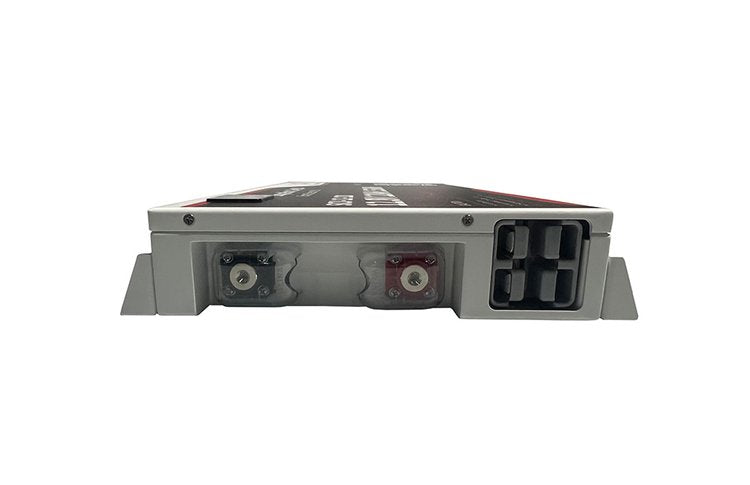

Recommended charge current is 30A (75A maximum) and it handles up to 150A discharge. Bluetooth 4.0 lets you check the battery from your phone, and it has M8 pole and Anderson terminals.

Need something narrower? The Supcelion 120Ah slimline is 276mm wide. Not sure which one fits your setup? Give us a call and we'll talk it through.

LITHIUM IRON PHOSPHATE BATTERY

Compared with traditional batteries, our lithium iron phosphate batteries (LiFePO4) has many advantages:

• IEC 62619 certified
• 5-year manufacturer’s warranty
• The safest technology, without risk of fire or explosion
• Long service life
• Constantly improving storage capacity
• High stability even under extreme loads
• No memory effect, no need for full charge and discharge cycles
• High performance even under extreme conditions
• Deep and regular discharge and charging efficiency
• Small size and lightweight

Integrated Bluetooth 4.0 monitoring

• You have all important battery data always on your smartphone or tablet.
• The application displays the data in real time.

SPECIFICATIONS

Model: SCU12.8v150ah

BMS (Battery Management System): Integrated

Rated capacity: 150Ah/1920Wh

Number of cycles: >4000

Weight: 23.65kg

Dimensions (L x W x H) in mm: 570*380*65 Excluding terminal

Operating voltage range: 10-14.6V

Rated voltage: 12.8V

Warranty: 5-year

Material of case: Metal

Terminals: M8 Pole & Anderson

Charging characteristics: CCCV/IU

Charging voltage: 14.6V

Recommended charge current: 30A

Maximum charge current: 75A

Maximum discharge current: 150A

Discharge Over Current Protection Current（15-25S）： 160A±10A
