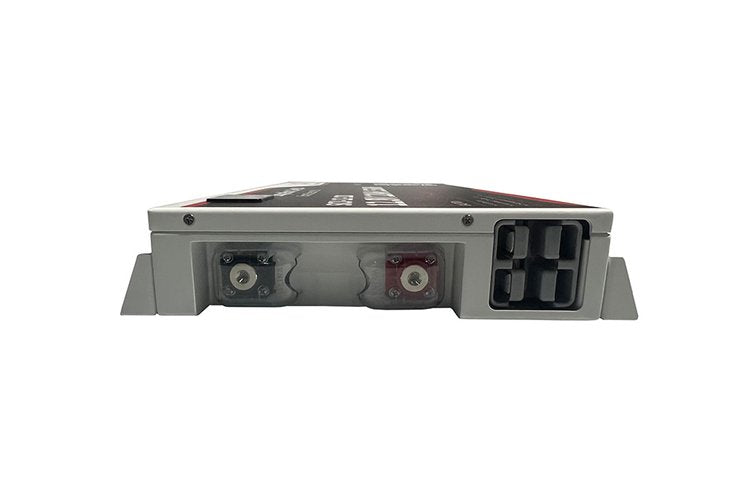

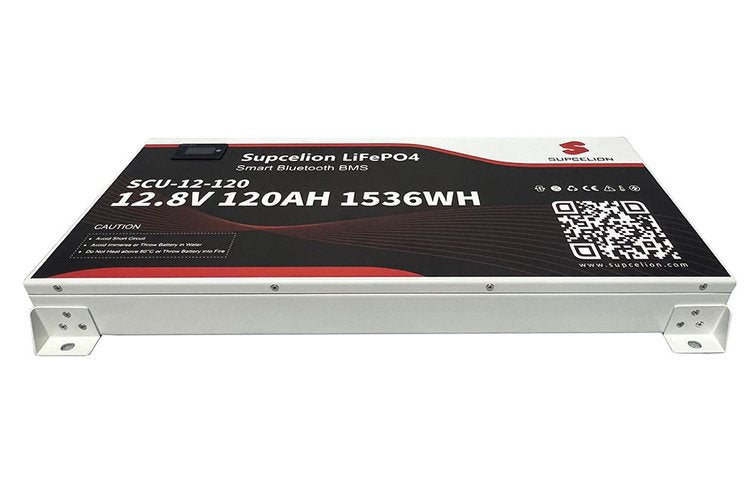

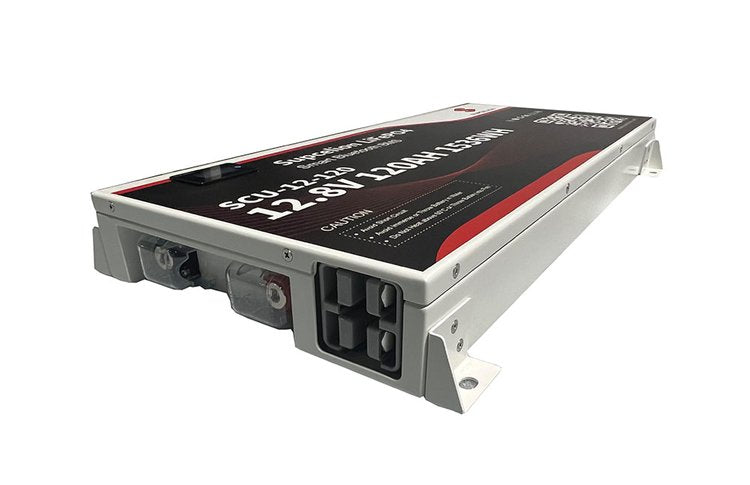

SUPCELION 12.8V 120Ah Slimline Lithium Battery with Bluetooth and LCD
120Ah slimline lithium in a narrow case
The Supcelion 12.8V 120Ah slimline is rated at 120Ah / 1536Wh in a long, narrow metal case: 630 x 276 x 68mm (excluding terminals). The narrower shape suits tighter spaces where a wider slimline battery won't fit.
Recommended charge current is 24A (60A maximum) and it handles up to 150A discharge. It has an LCD plus Bluetooth 4.0 so you can check the battery from your phone, and M8 pole and Anderson terminals.
Need more capacity? The Supcelion 150Ah slimline is 1920Wh and just 65mm high. Not sure which one fits your setup? Give us a call and we'll talk it through.
LITHIUM IRON PHOSPHATE BATTERY
Compared with traditional batteries, our lithium iron phosphate batteries (LiFePO4) has many advantages:
- IEC 62619 certified
- 5-year manufacturer’s warranty
- The safest technology, without risk of fire or explosion
- Long service life
- Constantly improving storage capacity
- High stability even under extreme loads
- No memory effect, no need for full charge and discharge cycles
- High performance even under extreme conditions
- Deep and regular discharge and charging efficiency
- Small size and lightweight
Integrated Bluetooth 4.0 monitoring
- You have all important battery data always on your smartphone or tablet.
- The application displays the data in real time.
BASIC INFO:
Model: SCU12.8V120AH
BMS (Battery Management System): Integrated
Rated capacity: 120Ah/1536Wh
Number of cycles: >4000
Weight: 23.2kg
Dimensions (L x W x H) in mm: 630*276*68 Excluding terminal
Operating voltage range: 10-14.6V
Rated voltage: 12.8V
Warranty: 5-year
Material of case: Metal
Terminal: M8 Pole & Anderson
Charging characteristics: CCCV/IU
Charging voltage: 14.6V
Recommended charge current: 24A
Maximum charge current: 60A
Maximum discharge current:150A
Discharge Over Current Protection Current(15-25S):160A±10A
