Supcelion 12.8V 100Ah Slimline Lithium Battery with Bluetooth and LCD
Supcelion 12.8V 100Ah Slimline Lithium Battery with Bluetooth and LCD
Regular price
$1,099.00
Regular price
$1,181.00
Sale price
$1,099.00
Unit price
/
per
Couldn't load pickup availability
Supcelion 12.8V 100Ah Slimline Lithium Battery with Bluetooth and LCD
$1,181.00
SKU: SCU-12-100
LITHIUM IRON PHOSPHATE BATTERY
Compared with traditional batteries, our lithium iron phosphate batteries (LiFePO4) has many advantages:
- IEC 62619 certified
- 5-year manufacturer’s warranty
- The safest technology, without risk of fire or explosion
- Long service life
- Constantly improving storage capacity
- High stability even under extreme loads
- No memory effect, no need for full charge and discharge cycles
- High performance even under extreme conditions
- Deep and regular discharge and charging efficiency
- Small size and lightweight
Integrated Bluetooth 4.0 monitoring
- You have all important battery data always on your smartphone or tablet.
- The application displays the data in real time.
Description
SPECIFICATIONS
| Basic Information | ||
| Model | 12.8V 100Ah | |
| BMS (Battery Management System) | Integrated | |
| Rated capacity | 100Ah/1280Wh | |
| Number of cycles | >4000 | |
| Weight | 16.9KG | |

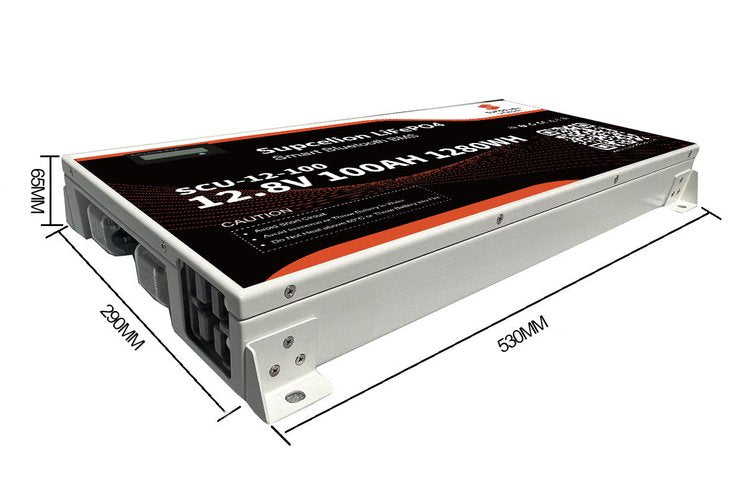

| Dimensions (Lx Wx H) in mm | 530*290*65 (Excluding Fixed support) | |
| Operating voltage range | 10-14.6V | |
| Rated voltage | 12.8V | |
| Warranty | 5-year | |
| Charge | Charging characteristics | CCCV/IU |
| Charging voltage | 14.6V | |
| Recommended charge current | 20A | |
| Maximum charge current | 50A | |
| Discharge | Maximum discharge current | 150A |
| Discharge cut-off current maximum(200~500ms)(A) | 310A | |
| Temperature | Temperature range (discharge) | -20 ~ 60℃ |
| Temperature range (charge) * | 0 ~ 55℃ | |
| Temperature range (storage) | -5~ 35℃ | |
| Ingress protection code | IP30 | |
| Application/ Interconnection | Series and parallel connection for 12V/24V/36V/48V applications. | |
| Material | Material of case Terminals | M8 Pole & Anderson |
| Intelligent monitoring | Monitoring | LCD & Bluetooth 4.0 with smartphone app |
| Connection | Can be connected in series and parallel |
