Compared with traditonal batteries, our lithium
iron phosphate batteries (LiFePO4) has many advantages:
· Dimension:330*172*215mm
· weight: 11.25kg
· Integrated 4.0 Bluetooth Application
· Class A prismatic LiFePO4 cells
· Built-in Integrated BMS
· Max. Continuous Discharge Current: 150A
· Can be connected in 4 parallel and 4 series
· Perfect for Solar Household & Off-Grid RV/Marine Applications
Integrated Battery Management System (BMS)
To allow the control and the charge of the different elements of an accumulator battery and to protect it against overcharging, overvoltages
Description

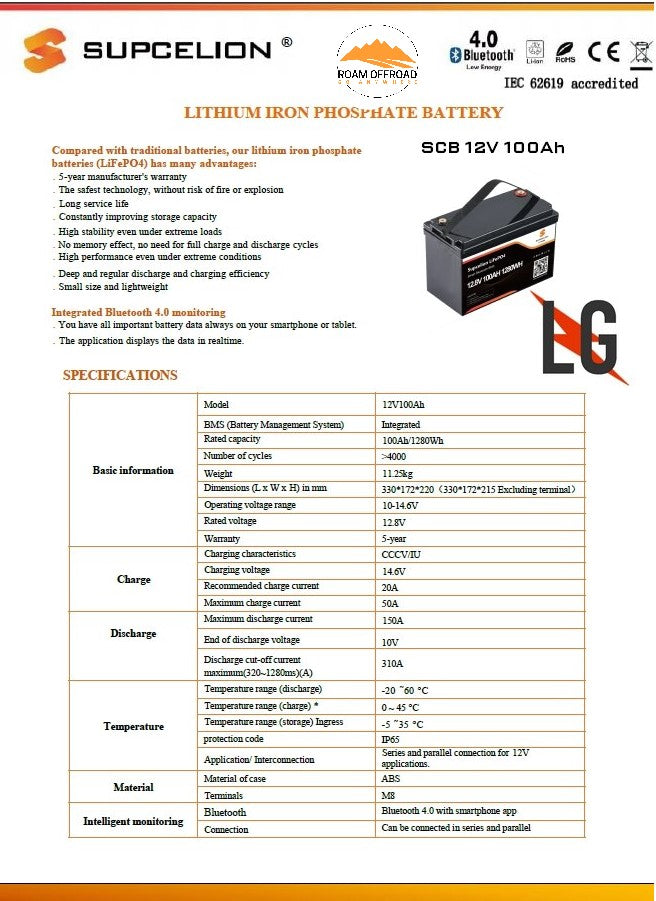

SPECIFICATIONS
| Basic Information |
| Model |
12.8V 100Ah |
| BMS (Battery Management System) |
Integrated |
| Rated capacity |
100Ah/1280Wh |
| Number of cycles |
>4000 |
| Weight |
11.25kg |
| Dimensions (Lx Wx H) in mm |
330*172*220（330*172*215 Excluding terminal） |
| Operating voltage range |
10-14.6V |
| Rated voltage |
12.8V |
| Warranty |
5-year |
| Charge |
Charging characteristics |
CCCV/IU |
| Charging voltage |
14.6V |
| Recommended charge current |
20A |
| Maximum charge current |
50A |
| Discharge |
Maximum discharge current |
150A |
| Discharge cut-off current maximum(320~500ms)(A) |
310A |
| Temperature |
Temperature range (discharge) |
-20 ~ 60℃ |
| Temperature range (charge) * |
0~ 55℃ |
| Temperature range (storage) |
-5~ 35℃ |
| Ingress protection code |
IP65 |
| Application/ Interconnection |
Series and parallel connection |
| Material |
Material of case |
ABS |
| Terminals |
M8 |
| Intelligent monitoring |
Bluetooth |
Bluetooth 4.0 with smartphone app |
| Connection |
Can be connected in 4 series and 4
parallel |
