LAZER LAMPS Triple-R 24 Elite+

Lazer Triple-R 24 Elite+

What is included:

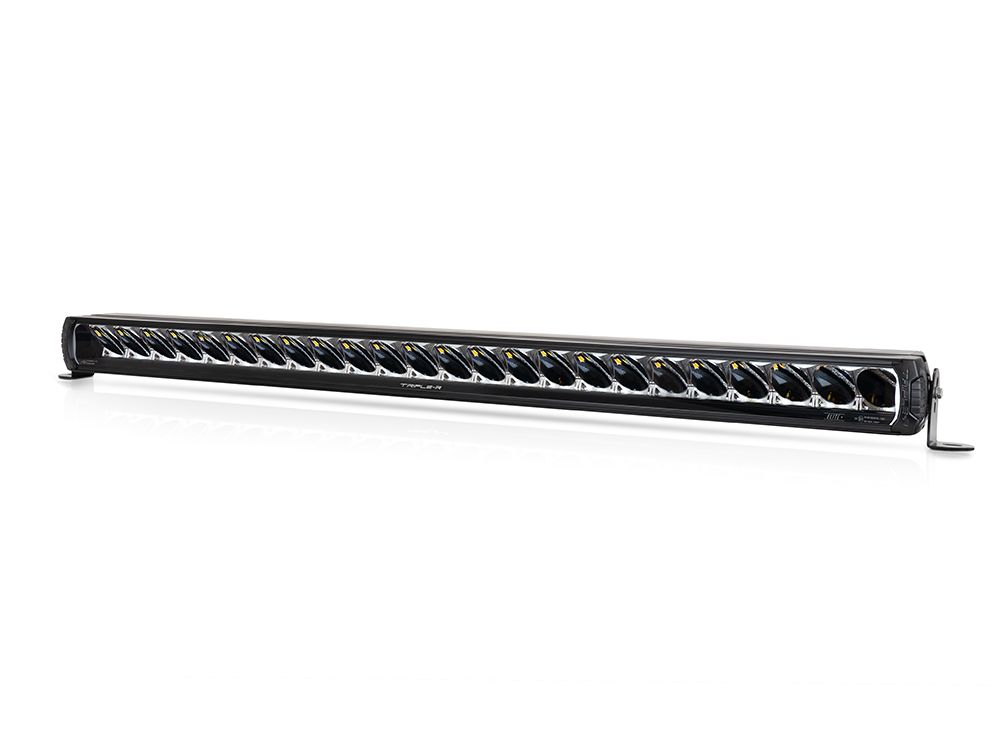

• x1 Triple-R 24 Elite+ LED Lightbar
• x3 Centre Mount (1114k)
• x1 Side Mount Kit (1118k)

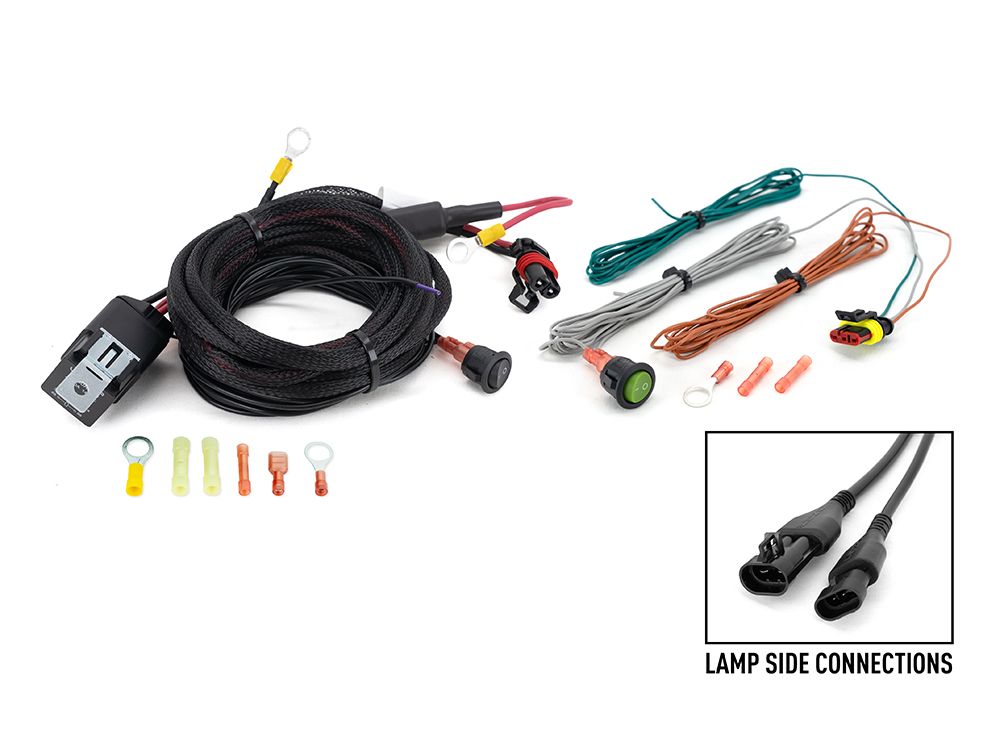

• x2 Wiring Kits (Econoseal & Superseal connections)
• x1 Installation Instructions

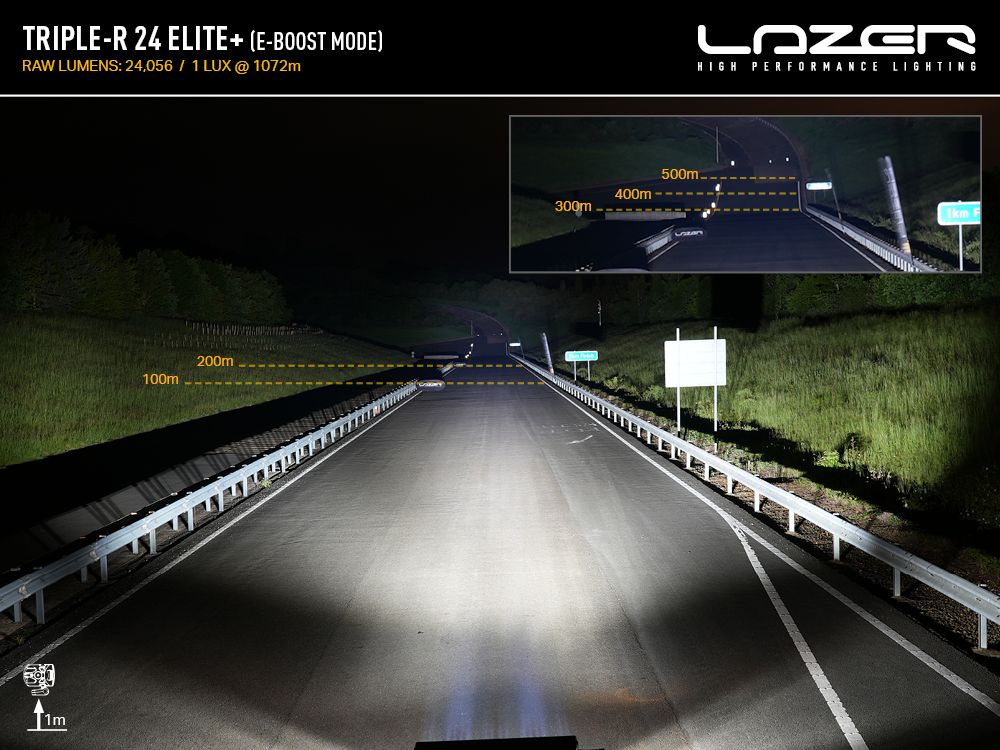

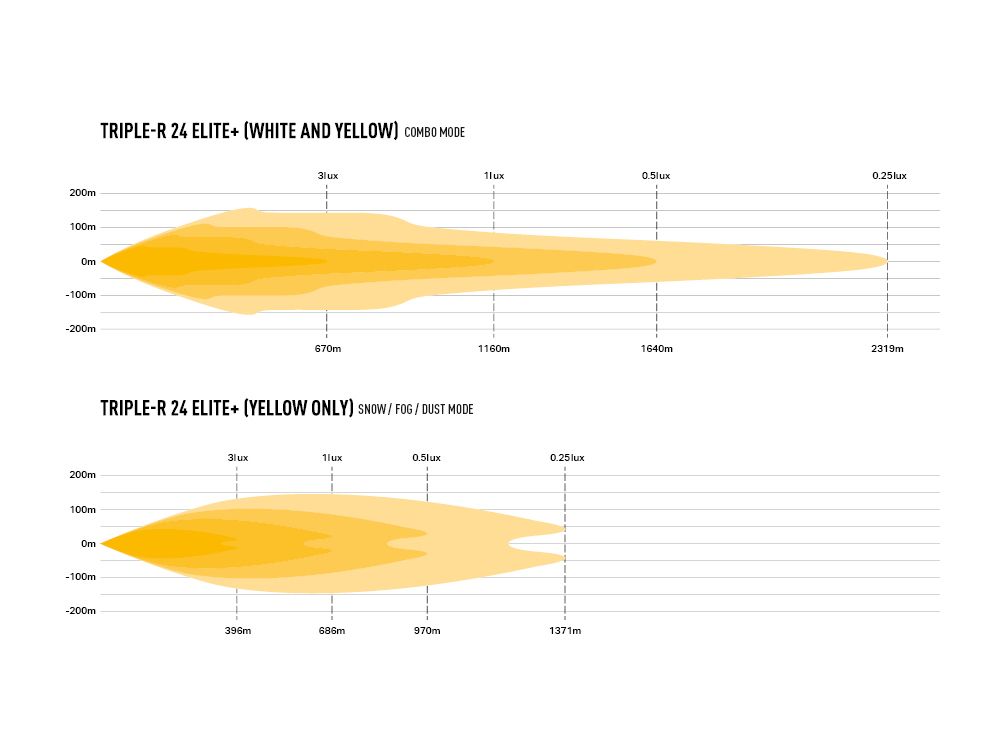

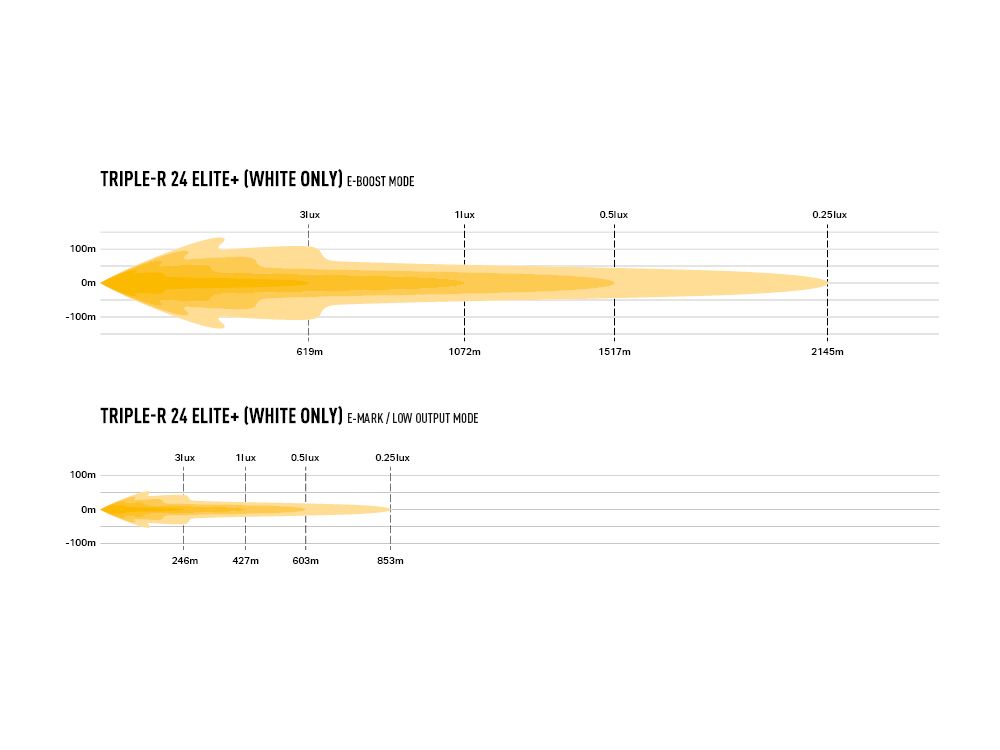

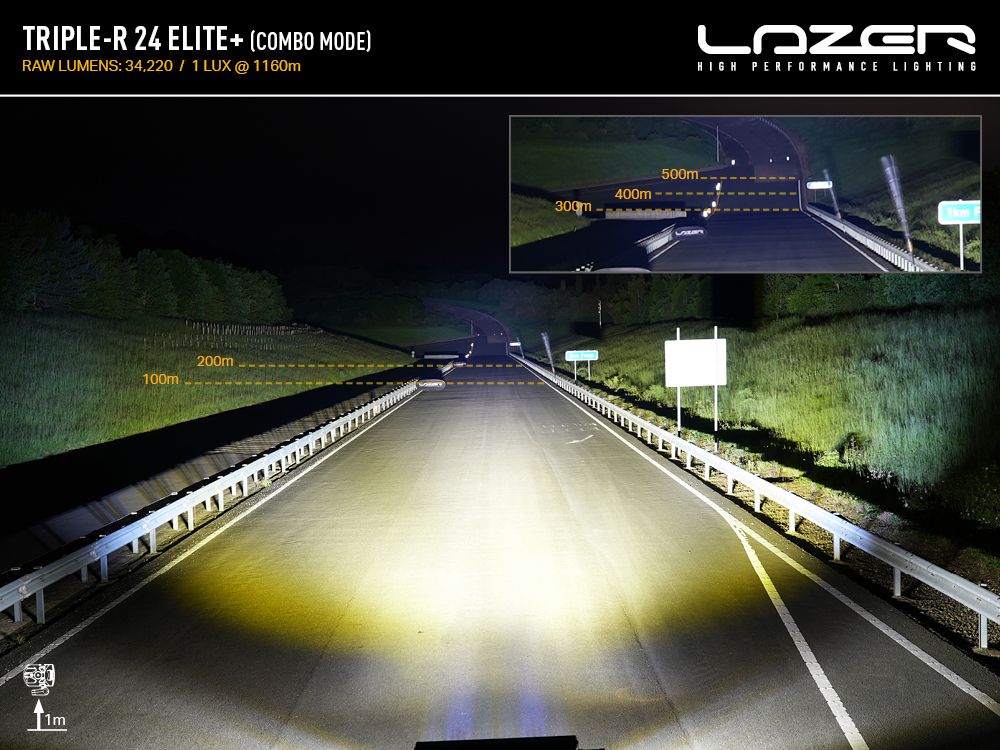

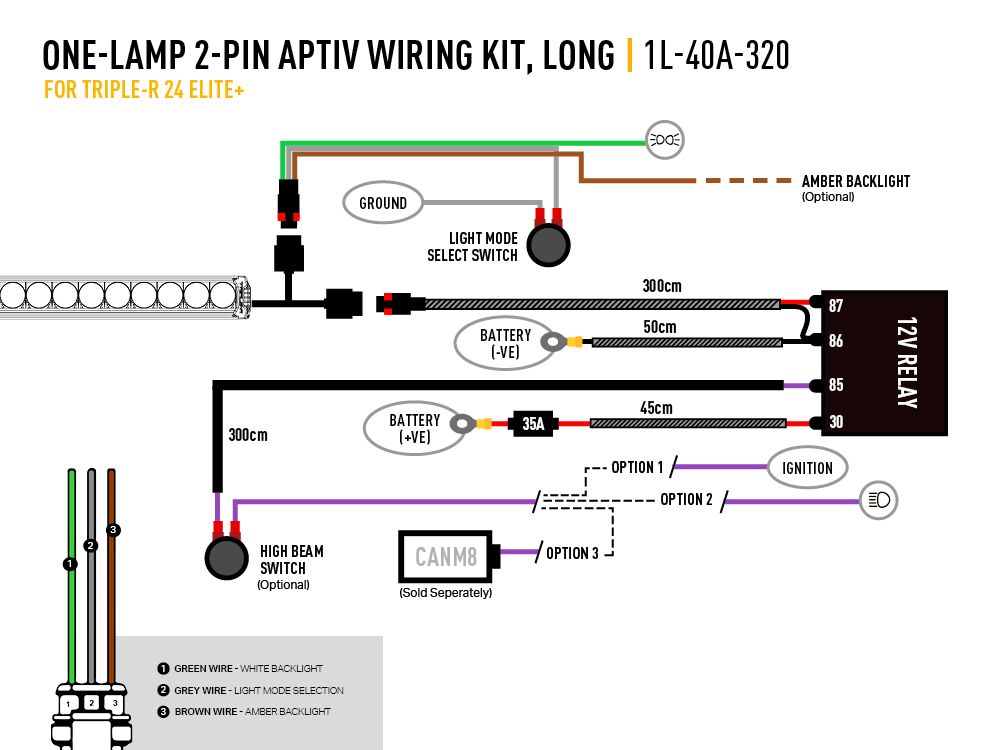

The imposing nature of the Triple-R 24 Elite+ is reflected in the lamp’s performance. Through advanced electronic design the light consists of a combination of 48 white LEDs and 40 yellow LEDs. With the light operating in Boost mode the white LEDs produce 24,056 raw lumen. Switching to ‘Combo’ mode the white and yellow LEDs combine to produce 34,220 raw lumen representing incredible lighting performance for a safer, more enjoyable night driving experience. All LEDs operating in combination results in 340W power consumption and 26.1Amps current draw (at 14V). To support operation of the lamp and electrical installation, the lamp features both a high power 2-pin Aptiv, and 3-pin Superseal connector. Additionally, included with each lamp are corresponding vehicle side wiring kits. The Aptiv connection is responsible for the high beam operation of the light, while the Superseal connections relate to the: function select, white and amber position light/backlight selection.
