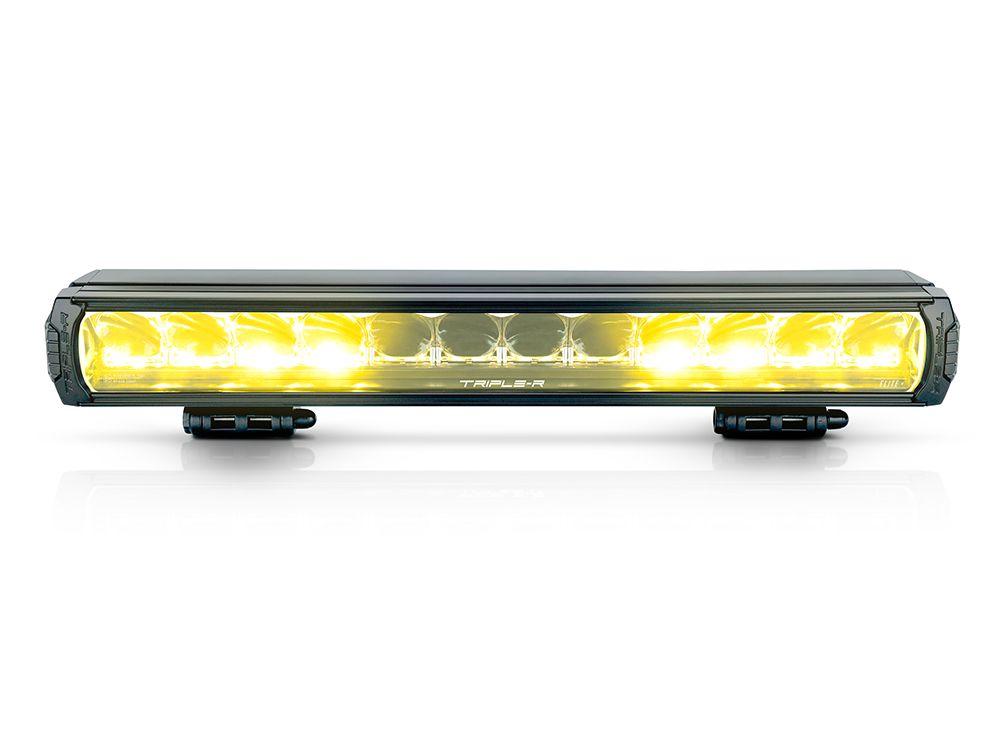

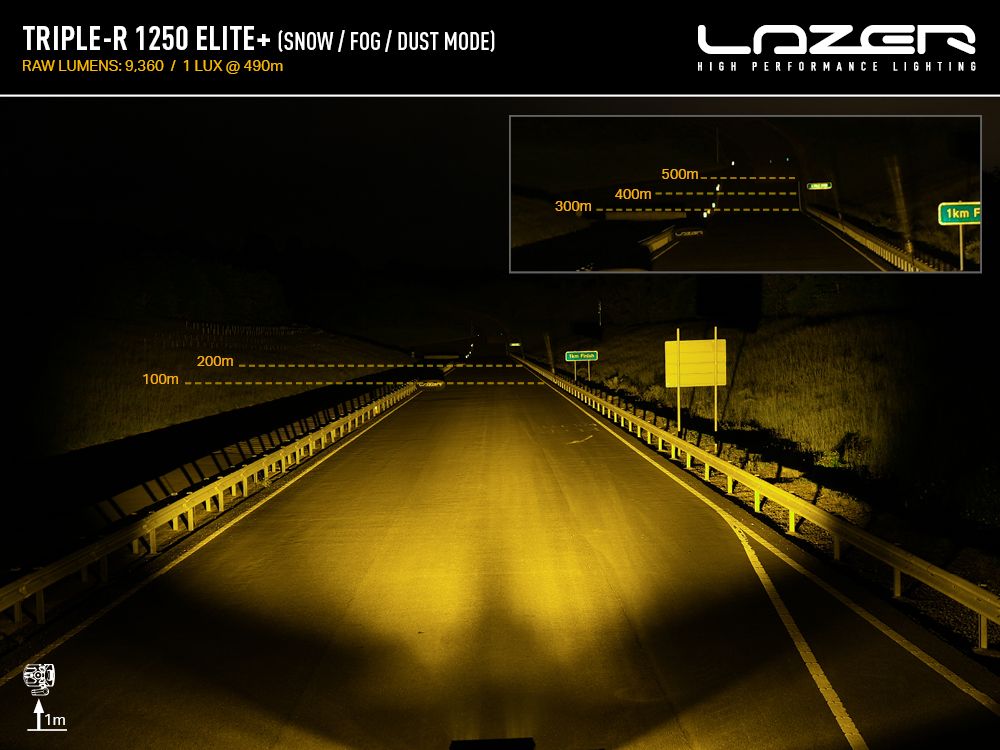

Representing an evolution in our highest performance LED lighting solutions, the Elite+ range comprises products with enhanced performance, light distribution, and functionality. Improvements are in part made through the placement of supplemental yellow LEDs in each of the lights, which can either combine with the already superior white light high beam function for awe-inspiring night-time visibility at a slightly softer, more relaxing colour temperature. Or the option to operate the yellow LEDs on their own, with that light angled slightly down and to the sides of the road or track making this function ideal in snow, fog, or dust conditions.
The lights are intended to cycle through the different lighting modes via a momentary switch. The lighting modes are: Boost (white only), Combo (white + yellow), Snow/Fog/Dust Mode (yellow only), and Low Output Mode (white only). A memory function within the lamp means the previous mode selected will be in effect when your vehicle is restarted for example. Additionally, pressing and holding the momentary switch for 2 seconds will result in the light instantly jumping to the Low Output mode.

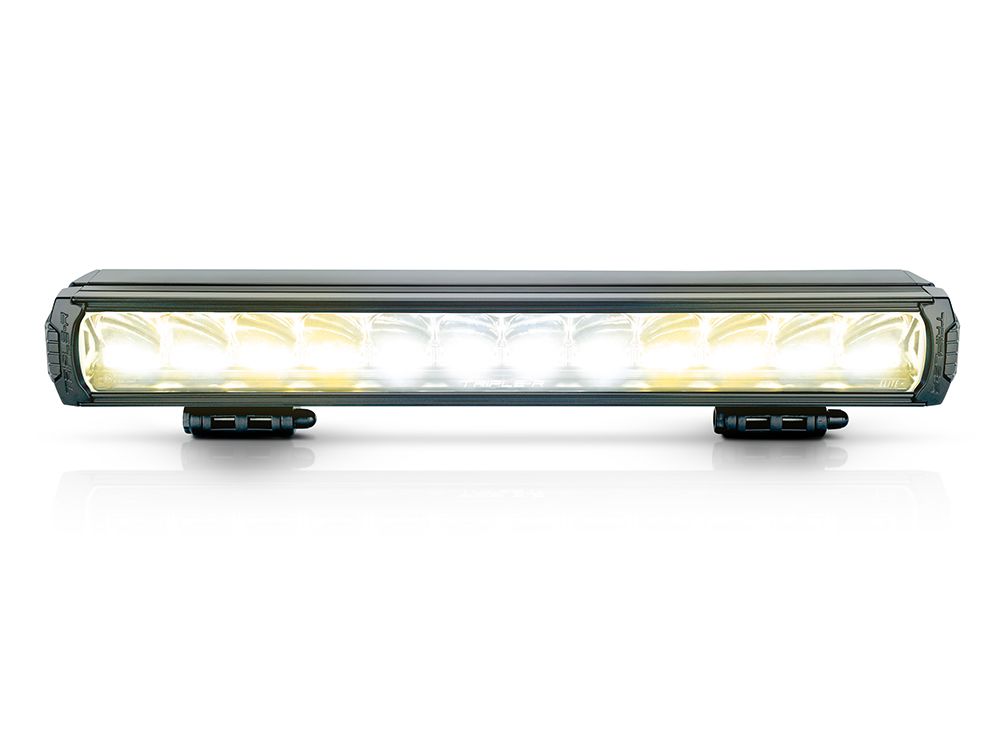

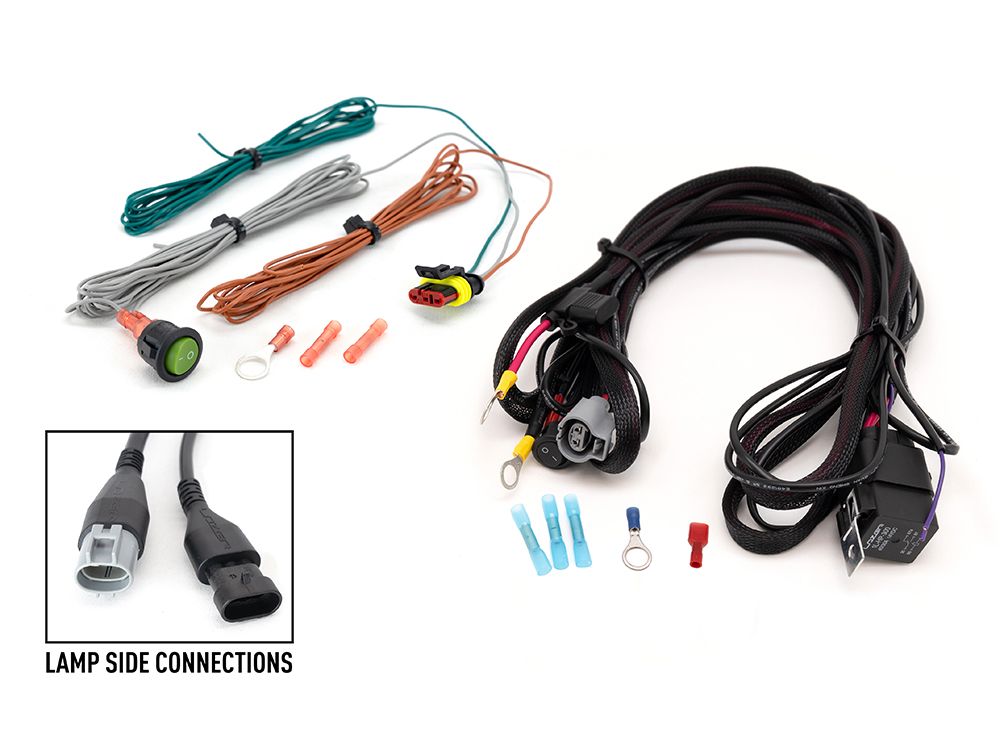

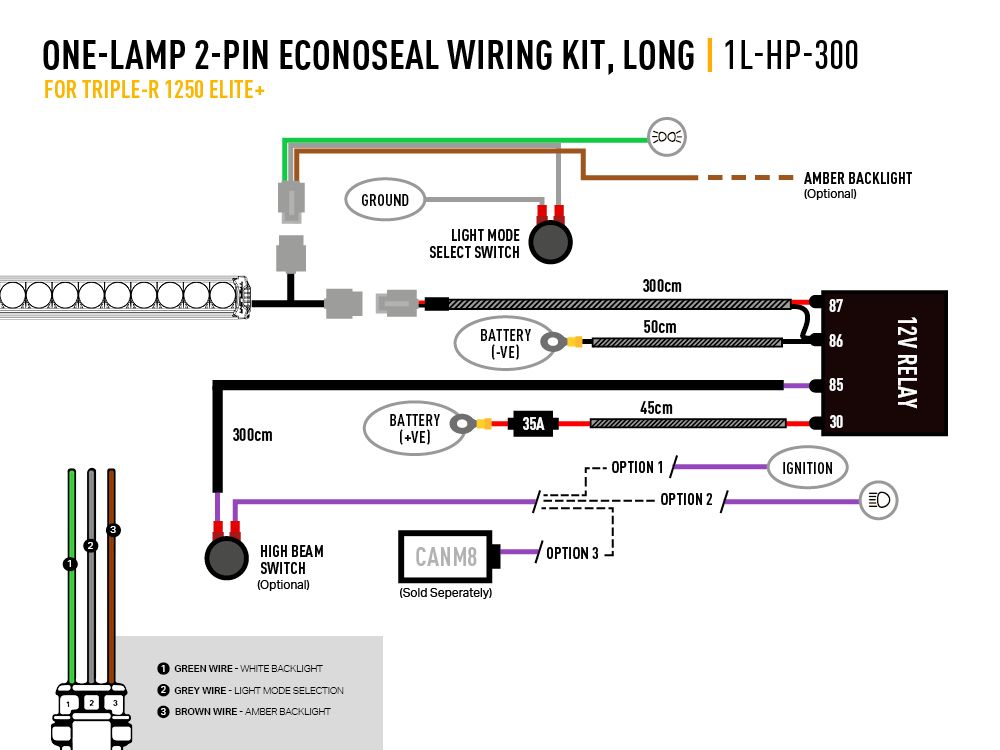

The impressive proportions of the Triple-R 1250 are reflected in the lamp’s performance. Through advanced electronic design the light consists of a combination of 24 white LEDs and 20 yellow LEDs. With the light operating in Boost mode the white LEDs produce 12,028 raw lumen. Switching to ‘Combo’ mode the white and yellow LEDs combine to produce 21,388 raw lumen representing incredible lighting performance for a safer, more enjoyable night driving experience. All LEDs operating in combination results in 220W power consumption and 16.9Amps current draw (at 14V). To support operation of the lamp and electrical installation, the lamp features both a high power 2-pin Econoseal, and 3-pin Superseal connector. Additionally, included with each lamp are corresponding vehicle side wiring kits. The Econoseal connection is responsible for the high beam operation of the light, while the Superseal connections relate to the: function select, white and amber position light/backlight selection.
Like all Lazer products, the Elite+ range has been designed, engineered, and is manufactured in-house in the UK to exacting standards, both in terms of performance, reliability, and appearance. With the light’s contemporary design, the styling and finish is impressive especially up-close, but the true wow moments comes when you turn the light on at night! Backed up by our comprehensive 5-year warranty, and Lifetime Lens Guarantee, this is a product you can have confidence will last for years in even the harshest environments.
Variants:
LAZER LAMPS Triple-R 1250 Elite+
LAZER LAMPS Triple-R 24 Elite+ (Plus)
Specifications
Based on: 1x Triple-R 1250 Elite+ LED Lamp
White LED's (E-Boost / Low Output Mode) -- Yellow LED's (Fog / Dust / Snow Mode) -- White & Yellow LED's (Combo Mode)
Voltage Range (DC) 10-32V -- 10-32V -- 10-32V
LED Life 50,000 hours 50,000 hours -- 50,000 hours
Weight 2.4 kg -- 2.4 kg -- 2.4 kg.
HIGH BEAM FUNCTION
Total Luminous Flux 12028 / 2045 – 9360 -- 21388
Total Driver 'FOV' Flux † 7464 / 1269 -- 5273 -- 12737
Colour Temperature 5000K -- PC Yellow -- N/A
Number of High Output LEDs 24 -- 20 -- 24 White / 20 Yellow
Power Consumption 131 W / 19.6 W -- 92 W -- 243 W
Current Draw 9.1 A / 1.4 A -- 6.4 A -- 16.9 A
Peak Current Draw 12 A / 1.8 A -- 8.5 A -- 22.8 A

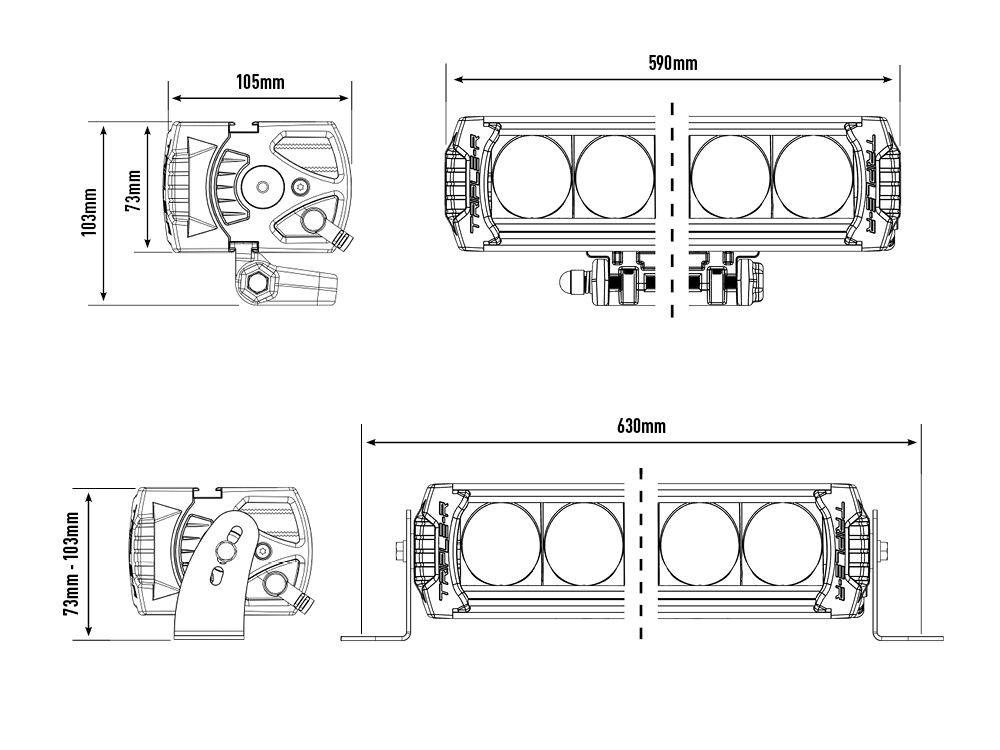

DIMENSIONS
Width 590mm -- 590mm-- 590mm
Depth 105mm -- 105mm -- 105mm
Height 73mm -- 73mm -- 73mm

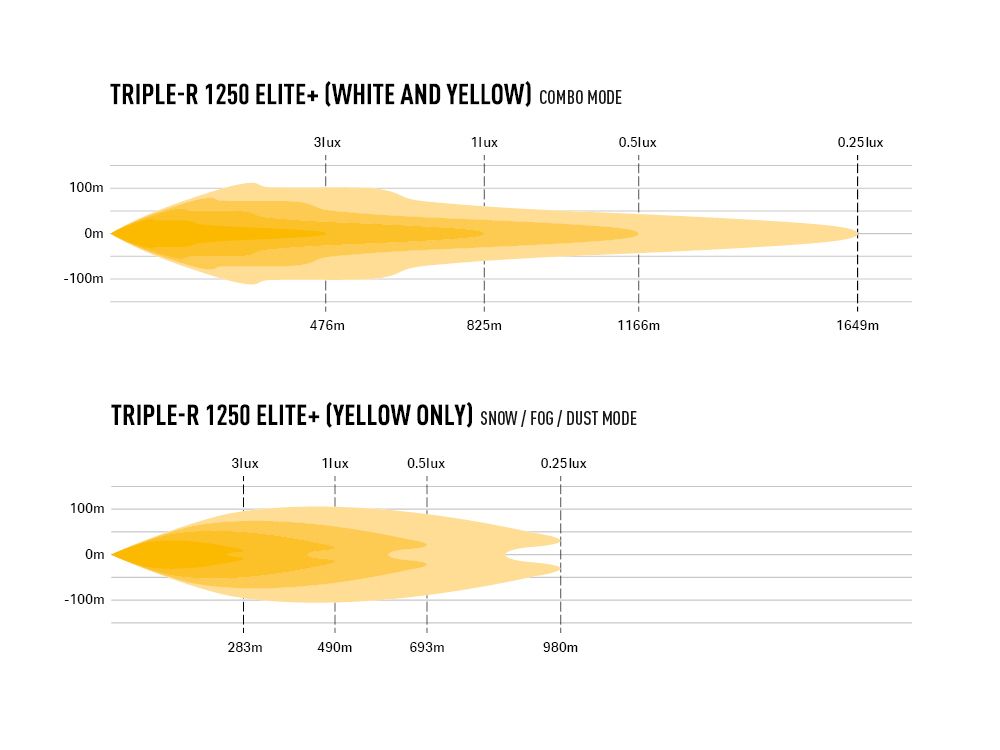

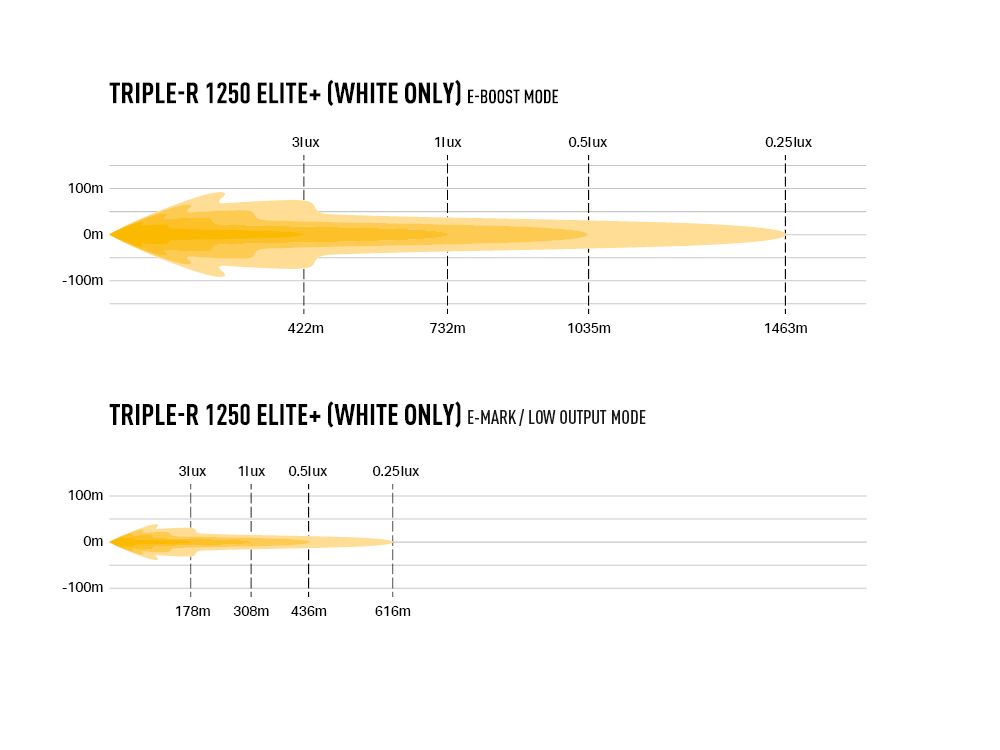

PHOTOMETRIC DATA

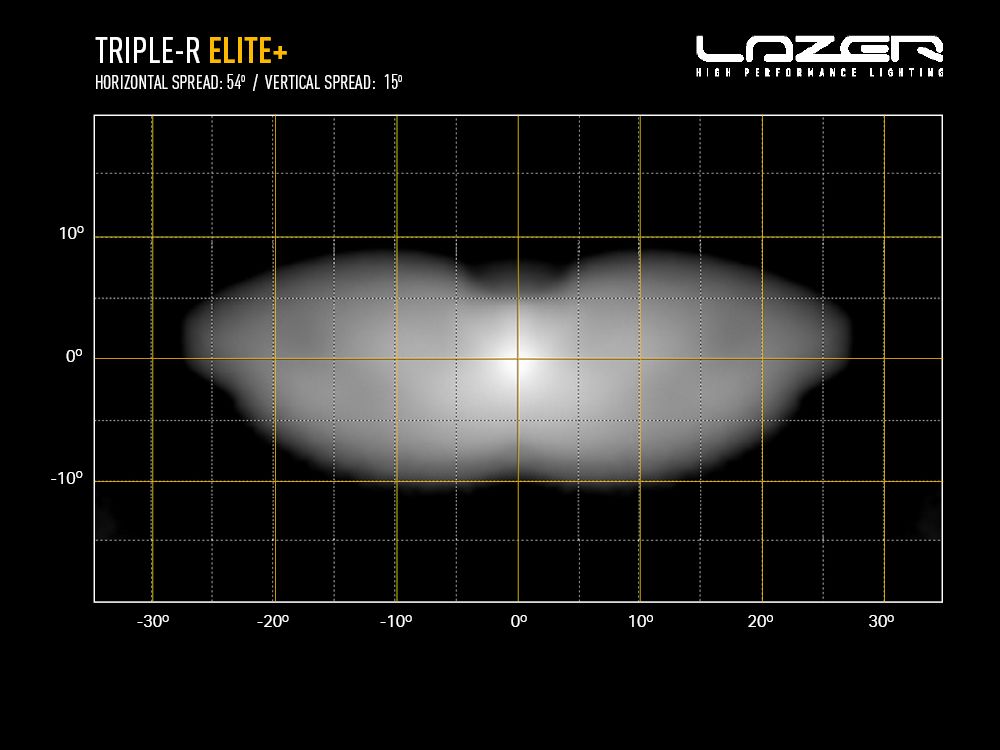

Horizontal Beam Angle 54° -- 54° -- 54°
0.25 lx Line 1470m / 616m -- 980m -- 1649m
0.5 lx Line 1039m / 436m -- 693m -- 1166m
1 lx Line 735m / 308m -- 490m -- 825m
3 lx Line 424m / 178m -- 283m -- 476m
Driver FOV flux is a measure of effective lumens taking consideration of the amount of light in a driver's 'field-of-view' defined as an area +/- 45o left/right, and +/- 10o up/down.
